270V Maximum Voltage PTC NTC Thermistor for IC Card Holder Protection with ∮ 5.5*W5.2 Dimensions

  • 270V Maximum Voltage PTC NTC Thermistor for IC Card Holder Protection with ∮ 5.5*W5.2 Dimensions
Luogo di origine XIAN, CINA
Marca QingZhu
Certificazione Reach,Rohs
Numero di modello MZ21-04BE (300-500)Ω
Quantità di ordine minimo 1000 pezzi
Prezzo Negoziabile
Imballaggi particolari cartone
Tempi di consegna 7-10 giorni
Termini di pagamento L/C, T/T
Capacità di alimentazione 100.000.000 pc all'anno

Contattimi gratis campioni e buoni.

whatsapp:0086 18588475571

Chatta: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Application Electronic, Electronic Products Supplier Type Original manufacturer, ODM
Trademark XIWUER Maximum Voltage (V) 270
Nominal resistance range at 25 ℃ Rn (Ω) 300~500 Dimensions(mm) ∮ 5.5*W5.2
Evidenziare

270V Maximum Voltage Thermistor

,

IC Card Holder Protection Thermistor

,

∮ 5.5*W5.2 Dimensions PTC NTC Thermistor
Lasciate un messaggio
Descrizione di prodotto
300-500 Ω PTC NTC Thermistor for IC Card Holder Protection MZ21 04BE
MZ21 04BE (300-500) Ω electronic meter IC card holder protection thermistor designed for prepaid electronic watt-hour meter applications.
IC Card Holder Protection PTC Thermistor
Protection Principle

The IC card holder protection thermistor prevents abnormal use of prepaid electronic watt-hour meter bayonets and protects against external static electricity, lightning strikes, strong electricity, accidental short circuits, and other attacks. It also enhances IC card reading/writing capability and extends the service life of both IC cards and card tables.

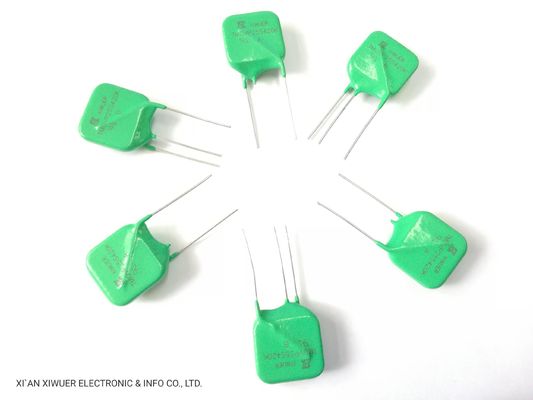

270V Maximum Voltage PTC NTC Thermistor for IC Card Holder Protection with ∮ 5.5*W5.2 Dimensions 0
Technical Parameters
Model Max Voltage (V) Rated Current (mA) Switch Current (mA) Resistance at 25℃ (Ω) Switch Temp (℃) Dimensions (mm)
MZ21-05BD (30-60)Ω 245 30 120 30-60 80±5 6.5 x 5.5
MZ21-05BD500M 245 30 115 50±20% 80±5 6.5 x 5.5
MZ21-05BD560M 245 30 115 56±20% 80±5 6.5 x 5.5
MZ21-04BE (300-500)Ω 270 10 25 300-500 70±5 5.5 x 5.2
IC Card Holder Protection PTC Module
Notes
  • Pin pitch: 3.0±0.1mm for all connections
  • Lead description: Pins 2,4,6,8,10 are input pins; 1,3,5,7,9 are output pins; pin 11 is GND terminal
  • Custom specifications available based on customer requirements
270V Maximum Voltage PTC NTC Thermistor for IC Card Holder Protection with ∮ 5.5*W5.2 Dimensions 1
PTC Module Technical Parameters
Model Regulation Range (V) Resistance Range (Ω) Switch Temp (℃) Lead Spacing (mm) Wire Diameter (mm) Module Size (mm)
PTCMK4-05BD(30-60)/04BE(300-500) 5.6±5% 30-60 / 300-500 80 / 70 3.0±0.1 0.6±0.5 33.5 x 13.0 x 8.5
PTCMK4-05BD(30-60)/04BE(300-500)-A 6.8±15%/5.6V±5% 30-60 / 300-500 80 / 70 3.0±0.1 0.6±0.5 33.5 x 13.0 x 8.5
PTCMK5-05BD(30-60)/04BE(300-500) 5.6±5% 30-60 / 300-500 80 / 70 3.0±0.1 0.6±0.5 33.5 x 13.0 x 8.5
PTCMK5-05BD(30-60)/04BE(300-500)-A 6.8±15%/5.6V±5% 30-60 / 300-500 80 / 70 3.0±0.1 0.6±0.5 33.5 x 13.0 x 8.5
PTCMK6-05BD(30-60)/04BE(300-500) 5.6±5% 30-60 / 300-500 80 / 70 3.0±0.1 0.6±0.5 37.5 x 13.0 x 8.5
PTCMK6-05BD(30-60)/04BE(300-500)-A 6.8±15%/5.6V±5% 30-60 / 300-500 80 / 70 3.0±0.1 0.6±0.5 37.5 x 13.0 x 8.5
Precautions
  • R: Resistance of thermistor between non-adjacent pins (3-4, 5-6, 7-8, 9-10)
  • Tc: Switching temperature of thermistor between non-adjacent pins
  • Custom specifications available based on customer requirements
Company Overview

Xian Xiwuer Electronic & Info. Co., Ltd. is a leading manufacturer of electronic components with:

  • 4000㎡ facility in Xi'an with 2300 employees including 580 technicians
  • 315 million RMB Yuan total assets
  • Main products: Varistors, SPDs, HV Ceramic Capacitors, Capacitive Voltage Dividers, Thermistors
  • ISO9001, ISO18000 certified with CCEE, UL, VDE & TUV approvals
  • Global exports to Japan, USA, Hong Kong, Korea, Spain, and India
