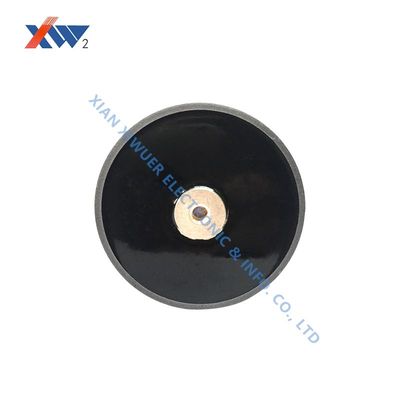

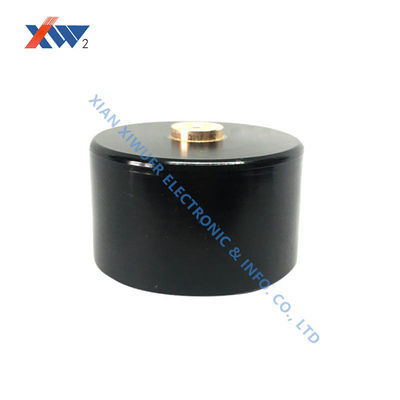

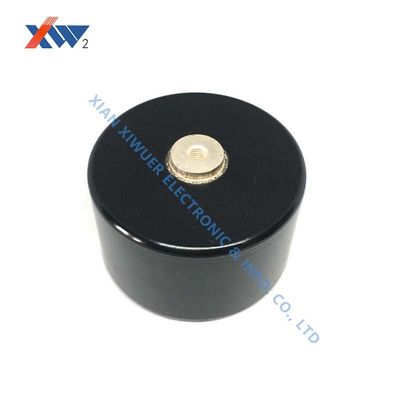

High Voltage Doorknob Capacitor for Material Handling Equipment with Long-Term Stability and Energy Efficiency

  • High Voltage Doorknob Capacitor for Material Handling Equipment with Long-Term Stability and Energy Efficiency
  • High Voltage Doorknob Capacitor for Material Handling Equipment with Long-Term Stability and Energy Efficiency
  • High Voltage Doorknob Capacitor for Material Handling Equipment with Long-Term Stability and Energy Efficiency
Luogo di origine XIAN, SHANNXI CINA
Marca XIWUER
Certificazione ISO9001,ISO14001,OHSAS18001
Numero di modello CT8-1-40kV-10000pF
Quantità di ordine minimo 1 pezzo
Prezzo Negoziabile
Imballaggi particolari Cartone
Tempi di consegna 10-15 giorni
Termini di pagamento L/c, t/t
Capacità di alimentazione 4.000.000 pc all'anno

Contattimi gratis campioni e buoni.

whatsapp:0086 18588475571

Chatta: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Evidenziare

Material Handling Equipment High Voltage Doorknob Capacitor

,

Long-Term Stability HV Doorknob Capacitor

,

Energy Efficiency Ceramic Doorknob Capacitor
Lasciate un messaggio
Descrizione di prodotto
High Voltage Doorknob Capacitors for Material Handling Equipment
Technical Specifications
No. Specification Dissipation Withstanding Voltage Insulation Resistance Dimensions (mm)
1 20kV-2000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:19 | L:23 | D:12 | M:5
2 20kV-10000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:65 | H:15 | L:19 | D:12 | M:5
3 20kV-18000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:17 | L:25 | D:12 | M:5
4 30kV-1000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:24 | L:32 | D:12 | M:4
5 30kV-2700pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:60 | H:20 | L:28 | D:12 | M:4
6 30kV-12000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:19 | L:23 | D:12 | M:5
7 40kV-150pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:74 | H:18 | L:26 | D:12 | M:5
8 40kV-500pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:28 | H:33 | L:41 | D:8 | M:4
9 40kV-7500pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:24 | L:29 | D:12 | M:6
10 40kV-10000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:22 | L:26 | D:16 | M:5
Total Cost of Ownership Analysis
For material handling equipment manufacturers, competitive advantage lies in long-term operational stability, energy efficiency, and maintenance costs - not just initial performance. Our high-voltage doorknob capacitors deliver value through their entire lifecycle.
Hidden Costs of Inferior Capacitors
  • Production losses from premature capacitor failure and batch scrapping
  • Unplanned downtime penalties and lost production capacity
  • Emergency repair costs and associated brand damage
  • Increased energy consumption from capacitor performance degradation
Our Value Proposition
Investing in our high-quality capacitors is a strategic decision that enhances your equipment's market competitiveness and profitability:
  • Process consistency: Maintains stable performance for consistent product quality
  • Maximized uptime: High reliability reduces failures and maintenance costs
  • Energy efficiency: Low dissipation factor minimizes operating costs
  • Supply chain stability: Consistent quality and guaranteed availability
Case Study: Optical Coating Equipment Manufacturer
A LiDAR filter coating manufacturer achieved remarkable results with our customized capacitors:
  • 90% reduction in annual equipment failure rate
  • Consistent coating yield exceeding 99.5%
  • 30% increase in equipment value over three years
We provide more than components - we deliver reliability guarantees and become your trusted partner in enhancing equipment performance and value.
