35KV 45PF High Voltage Doorknob Capacitor for Switchgear

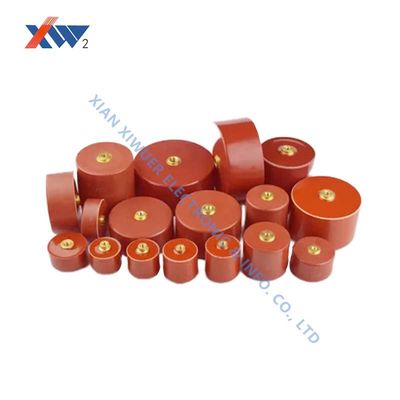

  • 35KV 45PF High Voltage Doorknob Capacitor for Switchgear

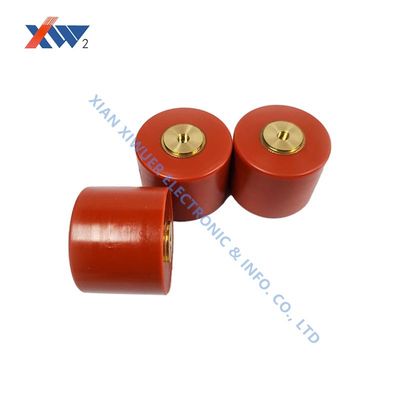

  • 35KV 45PF High Voltage Doorknob Capacitor for Switchgear

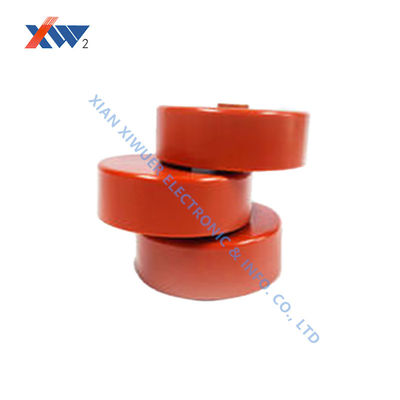

  • 35KV 45PF High Voltage Doorknob Capacitor for Switchgear
Luogo di origine XIAN, CINA
Marca XIWUER
Certificazione ISO9001,ISO14001,ISO45001
Quantità di ordine minimo 1 unità
Prezzo Negoziabile
Imballaggi particolari Cartone
Tempi di consegna 10~15days
Termini di pagamento L/c, t/t
Capacità di alimentazione 8.000.000 pc all'anno

Contattimi gratis campioni e buoni.

whatsapp:0086 18588475571

Chatta: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Evidenziare

35KV high voltage doorknob capacitor

,

45PF switchgear capacitor

,

high voltage capacitor for switchgear
Puoi spuntare i prodotti di cui hai bisogno e comunicare con noi nella bacheca.
Lasciate un messaggio
Descrizione di prodotto
High Voltage Doorknob Capacitor
Live Line Ceramic High Voltage Doorknob Capacitors used in switchgear 35KV 45PF. High voltage ceramic capacitors are made of ceramic dielectric with excellent withstand voltage, performance under pulse and fast discharge conditions, low dissipation factor, and very low partial discharge. Available in coated and uncoated versions for various AC and DC high voltage circuit applications.
Main Technical Data
Type (pF) Capacitance DC Vol.(KV) Charge & Discharge Vol.(KV) Dimension(mm) Operating Temp. Range
CT8-1 2500 15 22.5 10×40×13×22×5×12 －25℃～＋85℃
1000 20 30 15×32×13×22
4000 50 15×24
10000 80 23×32
50 30 45 20×20×12×24×4×8
1000 45 23×32
31 17 21
2000 50 23×32 4×12
2700 60 20×29
3800 74 23×32
140 40 60 30×20×32×41×4×8
200 20 33×42
820 38 27×31
1000 40 27×36 4×12
3300 65 27×36
5600 80 23×28 5×12
570 45 67.5 30×36×24×32×4×12
1000 50 32×36 4×12
600 50 75 35×45×34×43×4×12 －25℃～＋85℃
1000 50 27×36
2000 60 32×41 5×12
3000 74 29×38 5×12
Notes of High Voltage Live Line Capacitors Voltage Indicator
  • Dimensions can be customized according to customer requirements
  • PD not more than 5pC at 1.1 times rated voltage without special note
  • Complies with standard DL/T538-2006 (High Voltage Presence Indication Device)
  • Complies with standard JBT10305-2001 (Technical conditions for post insulator of organic material in the 3.6kV-40.5kV high voltage equipment at customers end)
  • Designed for use mainly below 3000 meters above sea level. Special marking required for high altitude applications
